Pearson 148
Pearson 148
There are two monitors at the instructor station in Pearson 148 labeled "PC Primary" and "PC Secondary." The panel in this room allows instructors to show what is on one monitor to both projector screens or choose to show one to the right screen and the other to the left screen.
Turing on the Projector, Selecting Monitors to Show on Projector Screen, and Muting the Screen
Take a look at the step-by-step instructions below or view Demo of Pearson 148 Panel (2:59) for a full video walk-through.

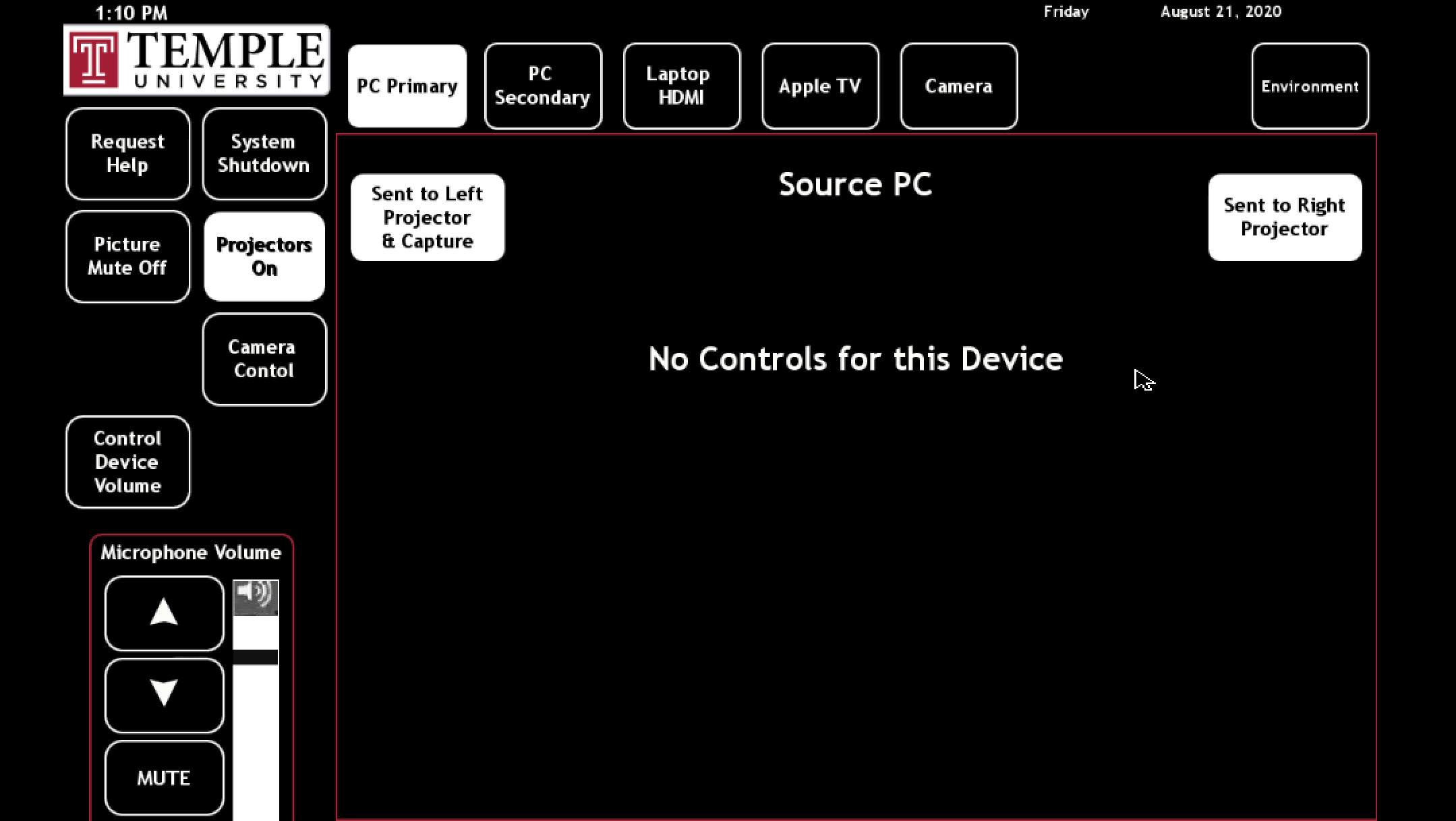

| 1. Touch the screen to activate the system |  |

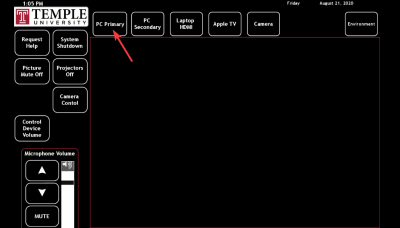

| 2. Press PC Primary |  |

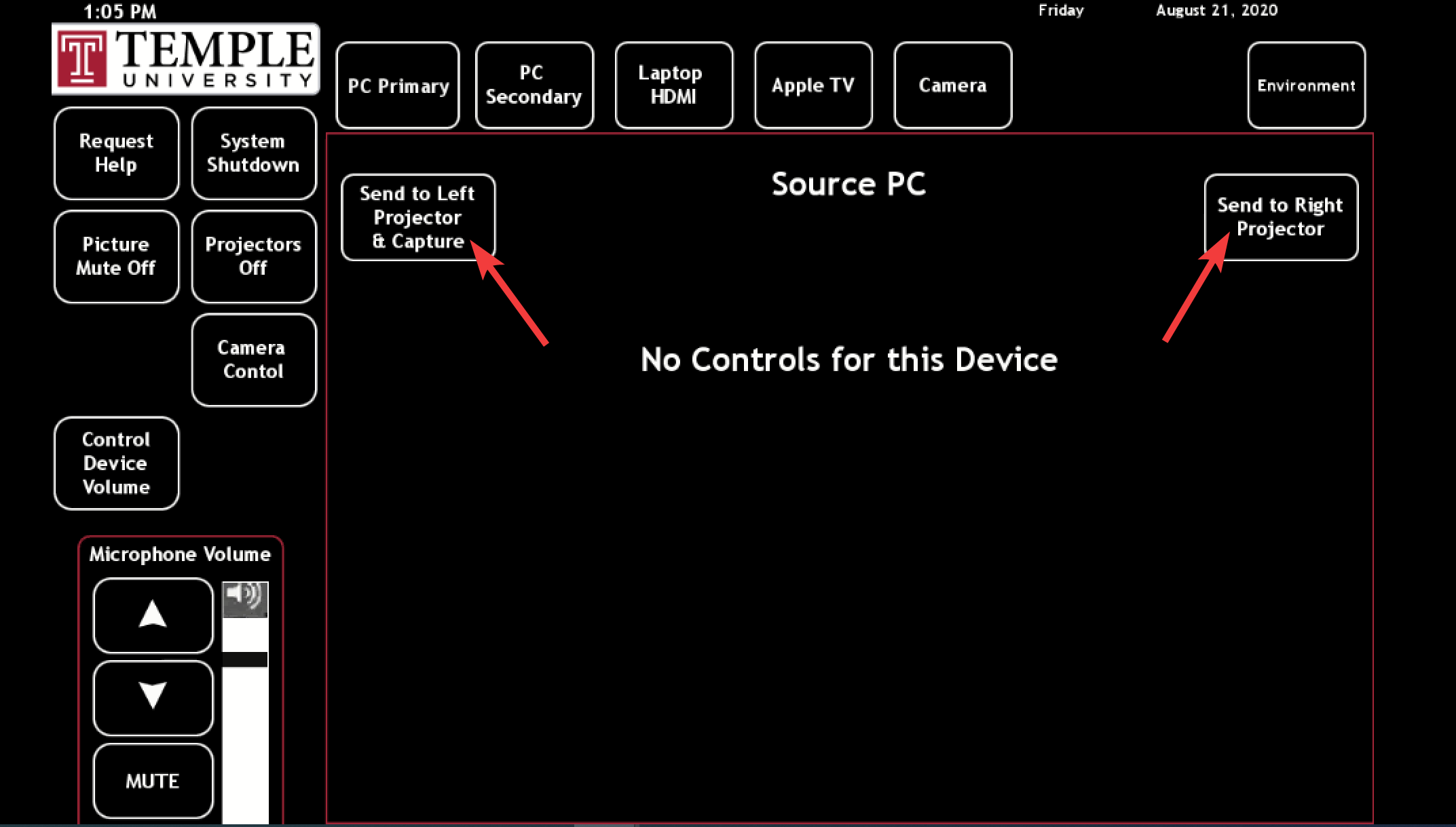

| 3. Press Send to Left Projector and Send to Right Projector |  |

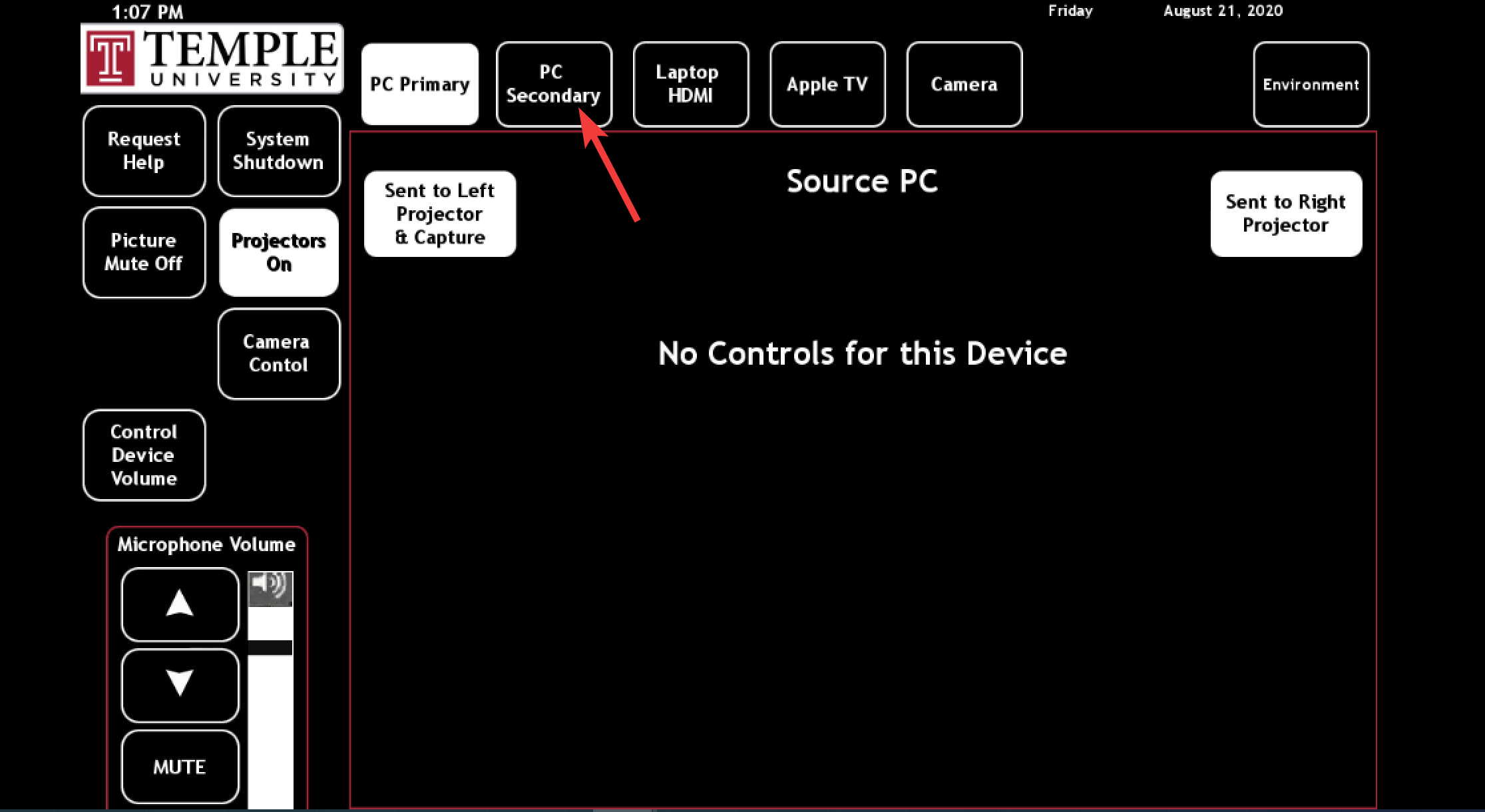

| 4. If you would like to send the image that is on the monitor labeled PC Secondary, press PC Secondary |  |
| 5. Then press Send to Left Projector and Send to Right Projector to send the image from PC Secondary |  |
| 6. Or, choose to send PC Secondary to one of the screens by pressing either Send to Left Projector or Send to Right Projector |  |
| 7. Press the Picture Mute button to mute the screen and press it again unmute the screen |  |
Adjusting the Camera

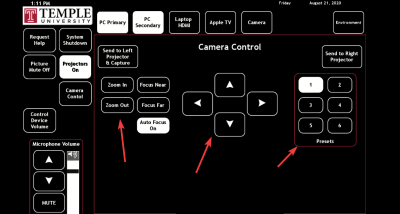

| 1. If you are using lecture capture or Zoom, you can adjust the camera angle by pressing Camera |  |
| 2. Use the Zoom In/Out and arrows to adjust as needed, or select one of the presets that are already set up. You can view the camera angle by pressing Send to Right Projector or Send to Left Projector |  |
Shutting Down the Projector

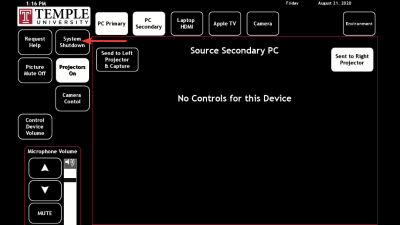

| 1. Press System Shutdown |  |
| 2. Press Shutdown without Password |  |
